Feature:
- Support DC, short circuit, overload and overheat protection;
- Designed with signal (green), CLIP (orange), Fault (red), and Power (blue) indicators on the panel;
- Support XLR balanced input; SPEAKON audio socket output;
- Support signal, power, temperature and other voltage-limiting functions;
- Support optional three modes: MONO/STEREO/BRIDGE;
- Support optional 1V/2V sensitivity;

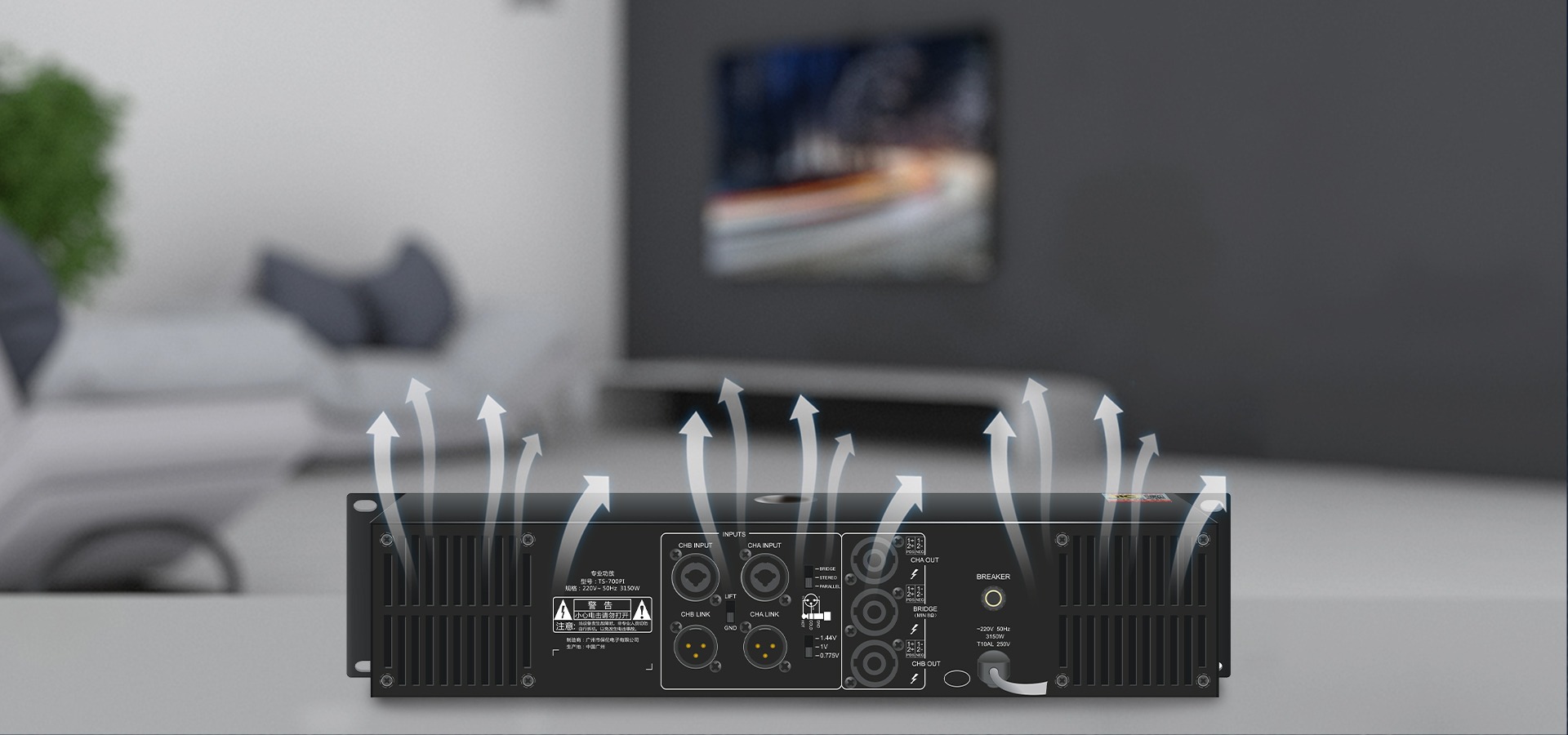

- With a temperature-controlled fan, it rotates as soon as it is turned on; the fan accelerates as the temperature rises, and reaches full speed at about 60℃;
- Super load capacity: support 8 ohms, 4 ohms, and minimum 2 ohms.
Product Detail
| Model | TC-2700 |
| Output power (1KHz/THD≤1%)
|
Stereo 8Ω: 2*700W;
Stereo 4Ω: 2*1200W; Stereo 2Ω: 2*1800W; Bridged 16Ω: 1400W; Bridged 8Ω: 2400W; Bridged 4Ω: 3600W; |
| Connector | XLR interface |
| Voltage gain (@1KHz) | 37.5dB |
| Input sensitivity | 2.2dBU(1V), 8.2dBU(2V) |
| Input impedance | 10KΩ unbalanced, 20KΩ balanced |
| Frequency response (@1W power) | 20-20KHz/±1dB |
| THD+N (@1/8 power) | ≤0.01% |
| SNR (A-weighted) | ≥102dB |
| Damping coefficient (@1KHz) | ≥200@ 8 ohms |
| Separation (@1KHz) | ≥85dB |
| Protection method | Over-voltage protection, under-voltage protection, over-current protection, DC protection, short circuit protection |
| Indicator light | Power, Fault, Clip, Signal |
| Cooling method | Fan cooling |
| Power supply | ~ 220 50Hz |
| Overall power consumption | 600W |
| Dimension (L×W×H) | 484×353×44mm |
| Weight | 6.5kg |
| Notes:
Output power: according to CEA-2006-B/CEA-490-A standard using 20ms pulse 1kHz sine wave measured under 1% total harmonic distortion. Overall power consumption: according to GB4943.1-2022 test method: measured under 1kHz sine wave rated load 1/8 power conditions. |
|
